23%OFF
  • V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner
  • V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner
  • V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner
  • V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner
  • V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner
  • V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner
  • V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner

V500 Car/Truck Diagnosis V500 OBD CR-HD Device Heavy Duty Truck Diagnostic Tool Code Reader Scanner Truck Diagnostic Scanner

0 stars, based on 0 reviews
Price:
$129.00$99.00 / piece
Quantity: - + 200 items available

Item specifics

Package:
138.9*85*22mm
Weight:
0.7KG

V500 Truck and Car Diagnosis 2 in 1 OBD OBD2 CR-HD Device Diagnostic Tool obd2 scanner v500 Heavy Duty Truck scan tool

V500-08V500-09V500-10V500-11V500-12V500-13V500-14V500-15V500-18V500-16

V500 Truck and Car Diagnosis 2 in 1 OBD OBD2 CR-HD Device Diagnostic Tool obd2 scanner v500 Heavy Duty Truck scan tool

For cars:

Support full 9 modes OBDII Diagnostics for cars

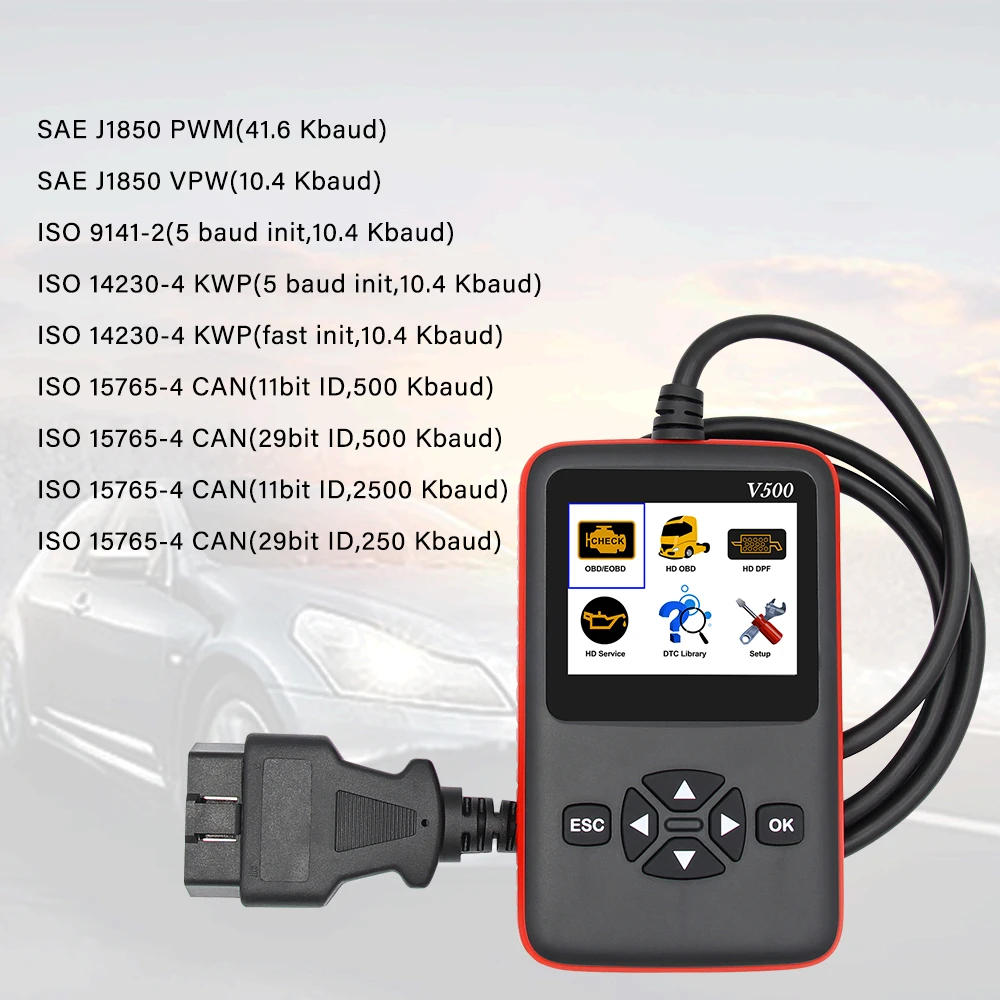

Supported protocols for Cars:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud init,10.4 Kbaud)

ISO 14230-4 KWP (5 baud init,10.4 Kbaud)

ISO 14230-4 KWP (fast init,10.4 Kbaud)

ISO 15765-4 CAN (11bit ID,500 Kbaud)

ISO 15765-4 CAN (29bit ID,500 Kbaud)

ISO 15765-4 CAN (11bit ID,2500 Kbaud)

ISO 15765-4 CAN (29bit ID,250 Kbaud)V500-10
For trucks:

* Support Universal Truck Multi-systems diagnosis

* Read codes & Erase Code for Trucks Engine/ ABS/ Brake/ AIRBAG/ Transmission , EPS,

Fuel multi-systems

* Sensor Live Data stream for multiple systems

* Support DPF regeneration

* Support Oil Service Light Reset

Supported protocols for Trucks:

J1939

J1587/1708(6/9PIN)

J1587/1708(16PIN)V500-09
Product Introduction:

1.First of all, thank you very much for choosing our products, this product is a kind of fault diagnosis instrument for trucks.

It supports several common truck protocols, such as SAE J1939/ISO 1708 and is also compatible with several standard protocols commonly used in cars.

Plug and play, it can quickly read the fault information and vehicle parameters of trucks and cars, is a very comprehensive fault diagnosis instrument. Please read the instructions carefully before using this product, thank you.



2. Matters need attention

1) Do not use depurative with abrasiveness to clean this product

2)Do not let this product be heated or near the fire source

3) Do not let this product be exposed to direct sunlight for a long time

4) Do not try to disassemble this product for any modification, as it does not contain any maintenance components.

5)Do not use this product in the rain

6)If you do not intend to use this product for a long time, please store it in a dry environment to avoid extreme temperature and dust.



3. Product parameters and parts

1)Product parametersControl chip: LPC1765FBD100Working voltage: DC 9 ~ 30VWorking current: 89mAOperating environment:- 20 ~ 65 ℃Storage temperature: -30 ~80 ℃Outline dimension: 138.9*85*22
